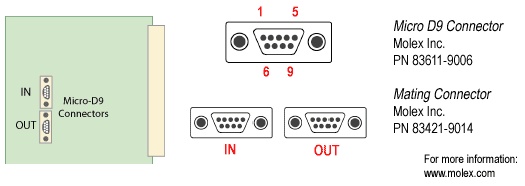

SQID Micro-D9 Connector




Pin
In
Out
Standard pinout
(NIC=MDI)
Crossover pinout
(HUB=MDI-X)
1
 Transmit + Receive +
2
 UUPI + UUPI +
3
 SHLD* SHLD*
4
 UUP2 + UUP2 +
5
 Receive + Transmit +
6
 Transmit – Receive –
7
 UUPI – UUPI –
8
 UUP2 – UUP2 –
9
 Receive – Transmit –
* Pin 3 on SynqNet nodes
are "No Connect."
