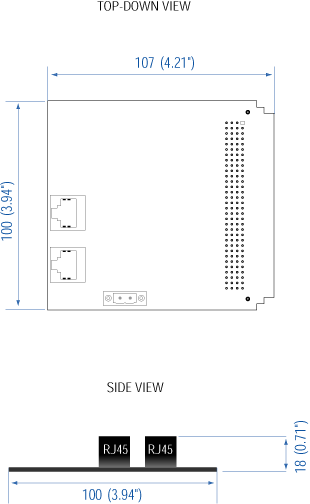

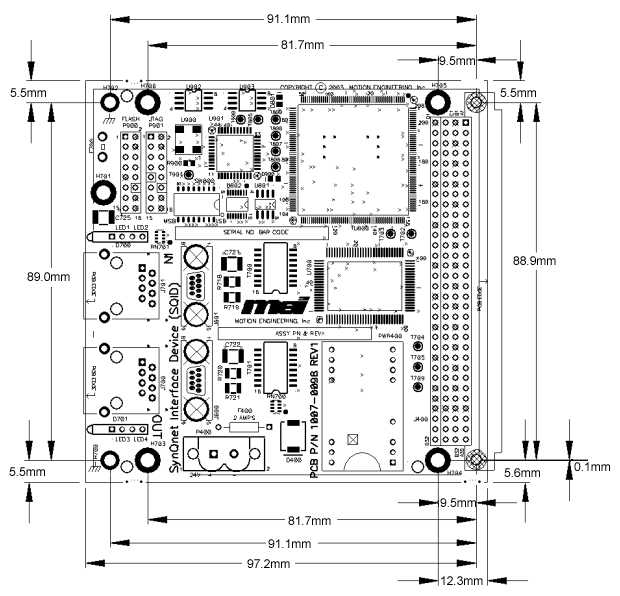

SQID: Dimensions

Weight: approx. 80g
Module Size: 100mm x 107mm, 18.2mm







Component Heights

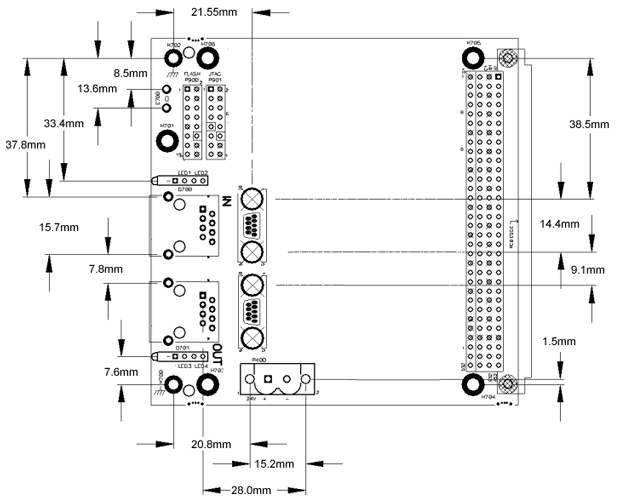

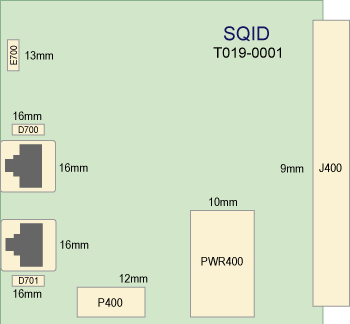

T019-0001: SQIO-SQID-RAFT-RJ-VERT

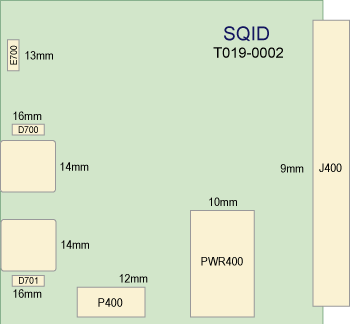

T019-0002: SQIO-SQID-RAFT-RJ-RA

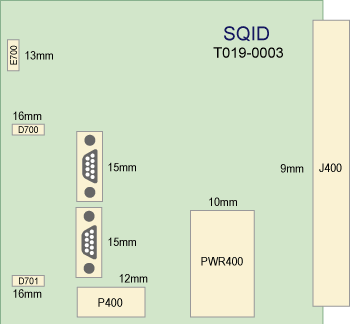

T019-0003: SQIO-SQID-RAFT-UD-VERT
