SQIO-MIXEDMODULE1: Digital Input Pinouts

NOTE: The common connections are per bank and are independent of the 24V supply to the SQID.

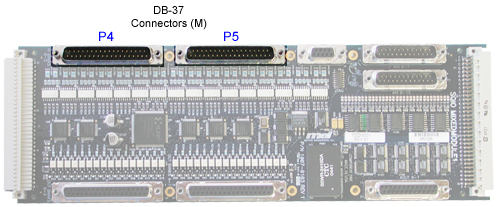

DB-37; P4

Pin
Signal
(sort by pin # )
Description
1
B2_DIN_0 Digital Input
20
B2_DIN_1 Digital Input
2
B2_DIN_2 Digital Input
21
B2_DIN_3 Digital Input
3
B2_DIN_4 Digital Input
22
B2_DIN_5 Digital Input
4
B2_DIN_6 Digital Input
23
B2_DIN_7 Digital Input
5
B3_DIN_0 Digital Input
24
B3_DIN_1 Digital Input
6
B3_DIN_2 Digital Input
25
B3_DIN_3 Digital Input
7
B3_DIN_4 Digital Input
26
B3_DIN_5 Digital Input
8
B3_DIN_6 Digital Input
27
B3_DIN_7 Digital Input
9
NC Not Connected
28
NC Not Connected
10
B0123_COM Opto Common
29
B0123_COM Opto Common
11
NC Not Connected
30
B0_DIN_0 Digital Input
12
B0_DIN_1 Digital Input
31
B0_DIN_2 Digital Input
13
B0_DIN_3 Digital Input
32
B0_DIN_4 Digital Input
14
B0_DIN_5 Digital Input
33
B0_DIN_6 Digital Input
15
B0_DIN_7 Digital Input
34
B1_DIN_0 Digital Input
16
B1_DIN_1 Digital Input
35
B1_DIN_2 Digital Input
17
B1_DIN_3 Digital Input
36
B1_DIN_4 Digital Input
18
B1_DIN_5 Digital Input
37
B1_DIN_6 Digital Input
19
B1_DIN_7 Digital Input



DB-37; P5

Pin
Signal
(sort by pin # )
Description
1
B6_DIN_0 Digital Input
20
B6_DIN_1 Digital Input
2
B6_DIN_2 Digital Input
21
B6_DIN_3 Digital Input
3
B6_DIN_4 Digital Input
22
B6_DIN_5 Digital Input
4
B6_DIN_6 Digital Input
23
B6_DIN_7 Digital Input
5
B7_DIN_0 Digital Input
24
B7_DIN_1 Digital Input
6
B7_DIN_2 Digital Input
25
B7_DIN_3 Digital Input
7
B7_DIN_4 Digital Input
26
B7_DIN_5 Digital Input
8
B7_DIN_6 Digital Input
27
B7_DIN_7 Digital Input
9
NC Not Connected
28
NC Not Connected
10
B4567_COM Opto Common
29
B4567_COM Opto Common
11
NC Not Connected
30
B4_DIN_0 Digital Input
12
B4_DIN_1 Digital Input
31
B4_DIN_2 Digital Input
13
B4_DIN_3 Digital Input
32
B4_DIN_4 Digital Input
14
B4_DIN_5 Digital Input
33
B4_DIN_6 Digital Input
15
B4_DIN_7 Digital Input
34
B5_DIN_0 Digital Input
16
B5_DIN_1 Digital Input
35
B5_DIN_2 Digital Input
17
B5_DIN_3 Digital Input
36
B5_DIN_4 Digital Input
18
B5_DIN_5 Digital Input
37
B5_DIN_6 Digital Input
19
B5_DIN_7 Digital Input
