SQIO-MIXEDMODULE1: Features

The SQIO-MIXEDMODULE1 is a standard MEI hardware module that supports 64 isolated digital inputs, 64 isolated digital outputs, 16 differential analog inputs, and 8 single-ended analog outputs.

Since the SQIO-MIXEDMODULE1 is designed on the popular 100mm width board, it offers immense flexibility. It can be deployed in a plastic extrusion as part of a DIN rail raft, or it can be mounted directly on pillars or installed in a 3U rack.

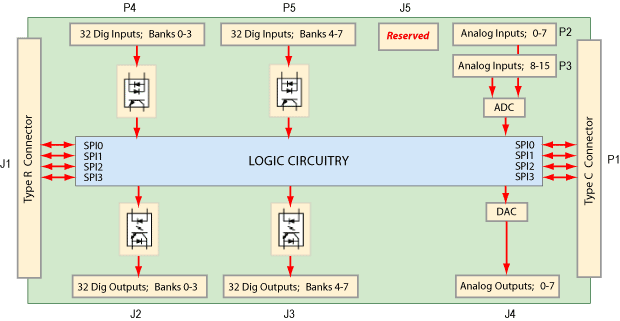

The chief elements of the SQID MixedModule are shown in the block diagram below.
