SQIO-MIXEDMODULE1: Analog Inputs

Characteristics | Application | Pinouts

Characteristics


  • The analog inputs are arranged in two banks of 8 with a common analog ground connection.
  • The 16 channels are converted sequentially in the order 15 > 14 > 13 >...> 1 > 0. If there is a node or a network that has other SQIO-MODULE1 or SQIO-ADC4DAC4 modules then the sequential conversion process will take place simultaneously on all board modules.

Parameter
Value
Notes
Resolution 16 bits
Input range
(for an input gain of unity)
±10V (305µV/bit)
Min
Common mode voltage range ±5V
Max
Conversion Time 175µs
Max
Common mode rejection ratio
(for an input gain of unity)
85dB @ 100Hz
60dB @ 4 kHz
Typical
Input filter pole 16 kHz
Typical
Input Impedence 10MΩ
Typical
No missing codes 15 bits
Typical
Integral linearity error ±3 bits
Typical
Drift of bipolar zero ±0.13 bits/K
Typical

Application

The analog inputs are arranged in two groups of 8.

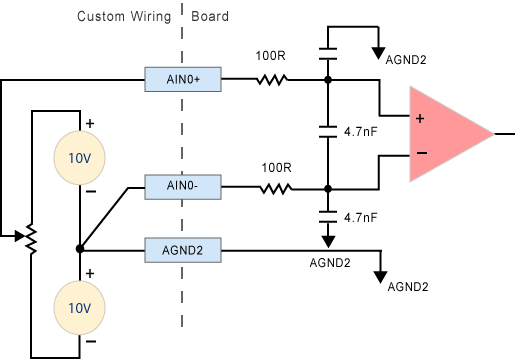

Connecting an ADC channel

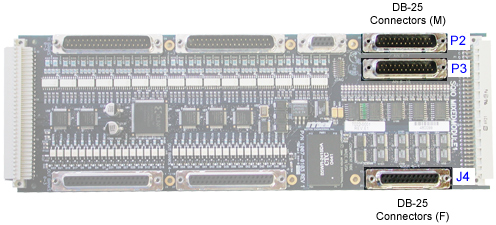

Pinouts

For pinout information, see the following pages.

Inputs: P2, P3
Outputs: J4
