SQIO-HSIN32: Digital Inputs
Characteristics | Application | Pinouts
Characteristics
| |
- There are 32 digital inputs.
- Inputs can be connected as current sourcing.
- Input Voltage Range: 24V ±5%
Inputs will be turned ON by a valid low voltage. (i.e. 0-5V)
|
Parameter |
Value |
| Input impedance |
2210Ω |
| Maximum ON voltage |
5V |
| Minimum OFF voltage |
22.2V |
| Maximum input voltage |
25.2V |
| NOTE: Input voltage is measured with respect to 24V_RTN. |
Application

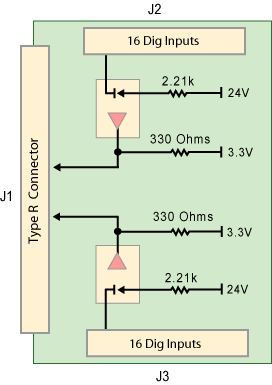

The digital inputs are arranged in 2 sets of 16. The inputs are configured as current sourcing.
Pinouts
For pinout information, see the following pages.
Inputs: J2, J3
|
