SQIO Housing:
DIN Rail Panel Mounting Base

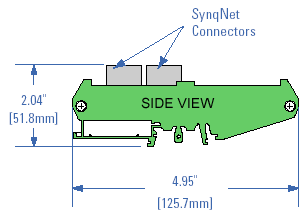

SQIO modules have been designed to be compatible with a standard Phoenix Contact DIN rail panel mounting base (raft). Although the width of the housing must be designed to hold a PCB whose width is 100mm (3.94in), the length of the housing can be customized accordingly, depending on the combination of connected board modules.

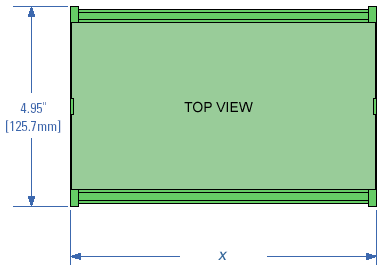

Note: X is the length of the extruded housing without end caps. For more information on determining the required length of the housing, see Calculating Total Length.

Housing Part Numbers

Phoenix Contact

Phoenix Contact Inc. – http://www.phoenixcon.com

PN
Description
29 06 49 0 Left-hand side plate with foot and PE contact
29 52 02 0/ x

UM -PROFIL, profile housing, 100mm width.
Plastic Extrusion

See the Calculating Total Length section below.

29 59 68 3 Right-hand side plate with foot
29 59 46 3 Optional intermediate foot (only for a long raft)



MEI

Motion Engineering Inc. – http://www.motioneng.com

PN
SQIO Modules
Description
Housing Length
1016-0300
SQID (T019-000x)
DIN32DOUT32 (T020-0001)
Housing,Kit,SQIO,27.15cm
27.15cm
1016-0301
SQID (T019-000x)
ADC4DAC4 (T021-0001)
Housing,Kit,SQIO,21.45cm
21.45cm
1016-0302
SQID (T019-000x)
MIXEDMODULE1 (T022-0002)
Housing,Kit,SQIO,40.35cm
40.35cm
1016-0303
SQID (T019-000x)
DIN32DOUT32 (T020-0001)
ADC4DAC4 (T021-0001)
Housing,Kit,SQIO,38.25cm
38.25cm
1016-0304
SQID (T019-000x)
ADC4DAC4 (T021-0001)
ADC4DAC4 (T021-0001)
Housing,Kit,SQIO,32.55cm
32.55cm
1016-0305
SQID (T019-000x)
DIN32DOUT32 (T020-0001)
DIN32DOUT32 (T020-0001)
Housing,Kit,SQIO,43.95cm
43.95cm
1016-0306
SQID (T019-000x)
HSIN32 (T024-0001)
Housing,Kit,SQIO,18.45cm
18.45cm



Calculating Total Length

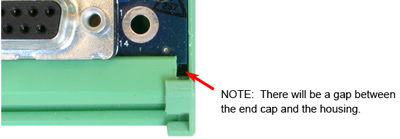

The following calculation can be used to determine the total length(cm) of housing that can be used with an SQIO setup. In order to accomodate for the extra space that the end caps provide, 0.35cm should be subtracted from the total length.

Total Length(cm) =
SQID + m * (ADC4DAC4)
         + m * (ADC4DAC4)
         + m * (MIXEDMODULE1)
         + m
* (HSIN32)
         – 0.35cm    For end caps
         – j * (0.6cm)    For joint connections

NOTE: For each joint connection, subtract 0.6cm (to compensate for mated connectors).

                                 where,  m = number of modules
                                             j = number of joint connections
                                             SQID (T019-000x) = 10.7cm
                                             ADC4DAC4 (T021-0001) = 11.7cm
                                             DIN32DOUT32 (T020-0001) = 17.4cm
                                             MIXEDMODULE1 (T022-0002) = 30.6cm
                                             HSIN32 (T024-0001) = 8.7cm

Example:


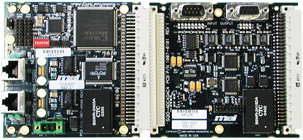

SQID + ADC4DAC4
(1 joint connection)
Housing PN: 1016-0301

[(10.7cm + 11.7cm) – 0.35cm] – 1*(0.6cm) = 21.45cm



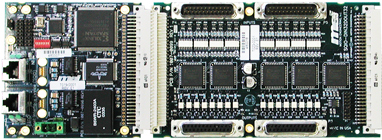

SQID + DIN32DOUT32
(1 joint connection)
Housing PN: 1016-0300

[(10.7cm + 17.4cm) – 0.35cm] – 1*(0.6cm) = 27.15cm



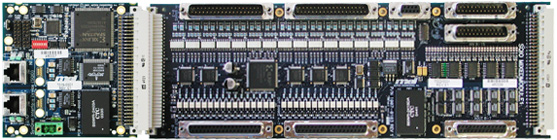

SQID + MIXEDMODULE1
(1 joint connection)
Housing PN: 1016-0302

[(10.7cm + 30.6cm) – 0.35cm] – 1*(0.6cm) = 40.35cm



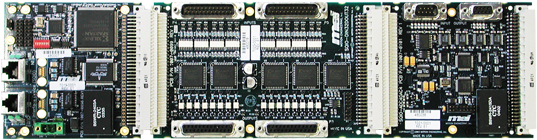

SQID + DIN32DOUT32 + ADC4DAC4
(2 joint connections)
Housing PN: 1016-0303

[(10.7cm + 17.4cm + 11.7cm) – 0.35cm] – 2*(0.6cm) = 38.25cm



SQID + HSIN32
(1 joint connection)
Housing PN: 1016-0306

[(10.7cm + 8.7cm) – 0.35cm] – 1*(0.6cm) = 18.45cm
