SQIO-DIN32DOUT32: Features

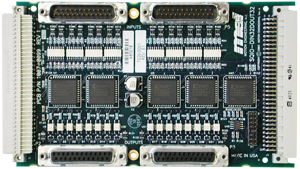

The SQIO-DIN32DOUT32 is a standard MEI hardware module that supports 32 isolated digital inputs and 32 isolated digital outputs.

Since the SQIO-DIN32DOUT32 was designed on the popular 100mm width board, it offers immense flexibility. It can be deployed in a plastic extrusion as part of a DIN rail raft, or it can be mounted directly on pillars or installed in a 3U rack.

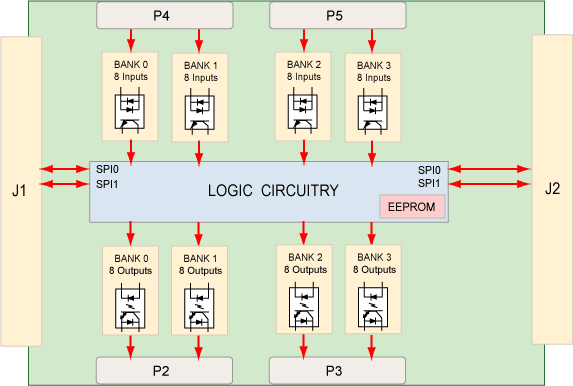

The chief elements of the SQIO-DIN32DOUT32 are shown in the following block diagram:
