SQIO-DIN32DOUT32: Chassis Connection
The SQIO-DIN32DOUT32 must be effectively bonded to the machine’s chassis to ensure reliable operation of the unit in the presence of electromagnetic interference. To ensure that a high level of hardware quality is maintained, the SQIO-DIN32DOUT32 has a number of features, which provide both flexibility and stability.
| |
- If the unit is coupled to the SQID then it is possible to just use the SQID’s chassis connection.

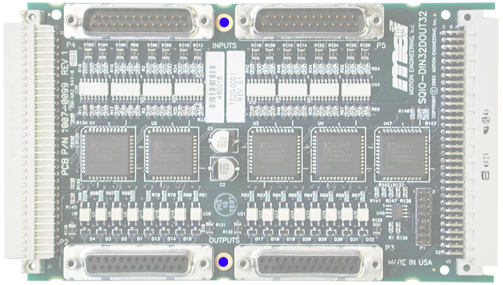

- If the unit is mounted on pillars then the larger two holes are available for connection to a bonding pillar. See photo below. These can also be used where the length of the assembly suggests that multiple chassis connections are appropriate
|
|
