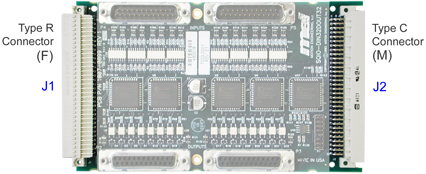

SQIO-DIN32DOUT32: Type R/C Connectors
 |
J1 |
Signal |
Signal |
J2 |
A1 |
+24V_IN |
+24V_IN |
A32 |
A2 |
24V_RTN |
24V_RTN |
A31 |
A3 |
I2C_WP |
I2C_WP |
A30 |
A4 |
3_3V |
3_3V |
A29 |
A5 |
I2C_ADDR_IN_2 |
I2C_ADDR_OUT_2 |
A28 |
A6 |
I2C_ADDR_IN_1 |
I2C_ADDR_OUT_1 |
A27 |
A7 |
I2C_ADDR_IN_0 |
I2C_ADDR_OUT_0 |
A26 |
A8 |
. |
. |
A25 |
A9 |
. |
. |
A24 |
A10 |
. |
. |
A23 |
A11 |
. |
. |
A22 |
A12 |
. |
. |
A21 |
A13 |
SPI1_CK |
SPI1_CK_BF_NX |
A20 |
A14 |
SPI1_CK_BUF |
SPI1_CK_BUF |
A19 |
A15 |
SPI0_SDI_MODUL |
SPI0_SDI_NX |
A18 |
A16 |
SPI0_SDO_MODUL |
SPI0_SDO_MODUL |
A17 |
A17 |
RS232_TXD |
RS232_TXD |
A16 |
A18 |
SPI0_CK |
SPI0_CK_BF_NX |
A15 |
A19 |
SPI0_CK_BUF |
SPI0_CK_BUF |
A14 |
A20 |
SPI2_SDO_MODUL |
SPI2_SDO_MODUL |
A13 |
A21 |
SPI2_CK_BUF |
SPI2_CK_BUF |
A12 |
A22 |
SPI2_CK |
SPI2_CK |
A11 |
A23 |
SPI3_CK |
SPI3_CK |
A10 |
A24 |
. |
. |
A9 |
A25 |
. |
. |
A8 |
A26 |
. |
. |
A7 |
A27 |
. |
. |
A6 |
A28 |
. |
. |
A5 |
A29 |
. |
. |
A4 |
A30 |
. |
. |
A3 |
A31 |
. |
. |
A2 |
A32 |
EARTHGND2 |
EARTHGND2 |
A1 |
B1 |
+24V_IN |
+24V_IN |
B32 |
B2 |
24V_RTN |
24V_RTN |
B31 |
B3 |
EARTHGND |
EARTHGND |
B30 |
B4 |
3_3V |
3_3V |
B29 |
B5 |
FP71_I2C_SCL |
FP71_I2C_SCL |
B28 |
B6 |
GND |
GND |
B27 |
B7 |
. |
. |
B26 |
B8 |
GND |
GND |
B25 |
B9 |
. |
. |
B24 |
B10 |
GND |
GND |
B23 |
B11 |
SPI0_SH_LDN |
SPI0_SL_BF_NX |
B22 |
B12 |
GND |
GND |
B21 |
B13 |
~SPI2_BUSY |
~SPI2_BUSY |
B20 |
B14 |
GND |
GND |
B19 |
B15 |
. |
. |
B18 |
B16 |
GND |
GND |
B17 |
B17 |
RS232_RXD |
RS232_RXD |
B16 |
B18 |
GND |
GND |
B15 |
B19 |
. |
. |
B14 |
B20 |
GND |
GND |
B13 |
B21 |
SPI2_SDI_MODUL |
SPI2_SDI_MODUL |
B12 |
B22 |
GND |
GND |
B11 |
B23 |
SPI2_SH_LDN |
SPI2_SH_LDN |
B10 |
B24 |
GND |
GND |
B9 |
B25 |
. |
. |
B8 |
B26 |
GND |
GND |
B7 |
B27 |
. |
. |
B6 |
B28 |
GND |
GND |
B5 |
B29 |
. |
. |
B4 |
B30 |
GND |
GND |
B3 |
B31 |
. |
. |
B2 |
B32 |
GND |
GND |
B1 |
C1 |
+24V_IN |
+24V_IN |
C32 |
C2 |
24V_RTN |
24V_RTN |
C31 |
C3 |
EARTHGND |
EARTHGND |
C30 |
C4 |
3_3V |
3_3V |
C29 |
C5 |
FP70_I2C_SDA |
FP70_I2C_SDA |
C28 |
C6 |
~SPI_PWRFLT |
~SPI_PWRFLT |
C27 |
C7 |
SP13_PRSNT |
SP13_PRSNT |
C26 |
C8 |
SP12_PRSNT |
SP12_PRSNT |
C25 |
C9 |
SPI1_PRSNT_LEFT |
SPI1_PRSNT_RIGHT |
C24 |
C10 |
SPI0_PRSNT_LEFT |
SPI0_PRSNT_RIGHT |
C23 |
C11 |
. |
. |
C22 |
C12 |
. |
. |
C21 |
C13 |
SPI1_SDO_MODUL |
SPI1_SDO_MODUL |
C20 |
C14 |
SPI1_SDI_MODUL |
SPI1_SDI_NX |
C19 |
C15 |
. |
. |
C18 |
C16 |
~SPI_RESET |
~SPI_RESET_BF_NX |
C17 |
C17 |
~DP_RESET |
~DP_RESET |
C16 |
C18 |
SPI1_STB |
SPI1_STB_BF_NX |
C15 |
C19 |
~SPI1_OE |
~SPI1_OE_BF_NX |
C14 |
C20 |
SPI3_SDO_MODUL |
SPI3_SDO_MODUL |
C13 |
C21 |
SPI3_SDI_MODUL |
SPI3_SDI_MODUL |
C12 |
C22 |
SPI3_LOAD |
SPI3_LOAD |
C11 |
C23 |
~SPI3_CS |
~SPI3_CS |
C10 |
C24 |
. |
. |
C9 |
C25 |
. |
. |
C8 |
C26 |
. |
. |
C7 |
C27 |
. |
. |
C6 |
C28 |
. |
. |
C5 |
C29 |
. |
. |
C4 |
C30 |
. |
. |
C3 |
C31 |
. |
. |
C2 |
C32 |
. |
. |
C1 |
|
 |
If the Type C connector is mated with a Type R connector, the pin order on that connector is reversed as shown.
|
