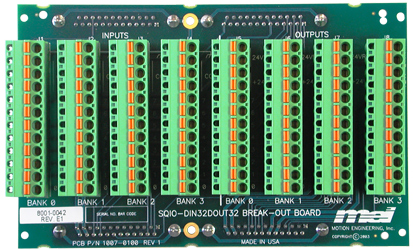

SQIO-DIN32DOUT32-BO: Break-out Board

For customers building prototypes, MEI also provides a break-out board that attaches directly onto an QIO-DIN32DOUT32 board. This is helpful for users who wish to use two-part 5.08mm connectors rather than D-type connectors.


MEI PN: 8001-0042

4 Input Banks: Bank 0-3
4 Output Banks: Bank 0-3

Each bank of 8 is routed to a 12-way, coded, 5.08mm two-part connector such as Phoenix's Combicon. The populated board with mating parts weighs approximately 325g.

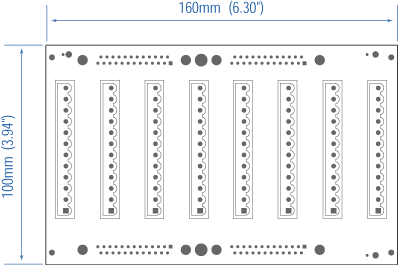

Dimensions



See Also: Connector Locations (pdf)

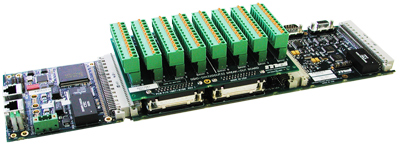

Example Setup



Example of a breakout board mounted on a DIN32DOUT32.
