Connect Two XMP Boards (12-16 Axes)

To create systems with more than eight (8) axes, use two XMP boards, with one board configured as the main, and the other board configured as the expansion.

Typical Connections

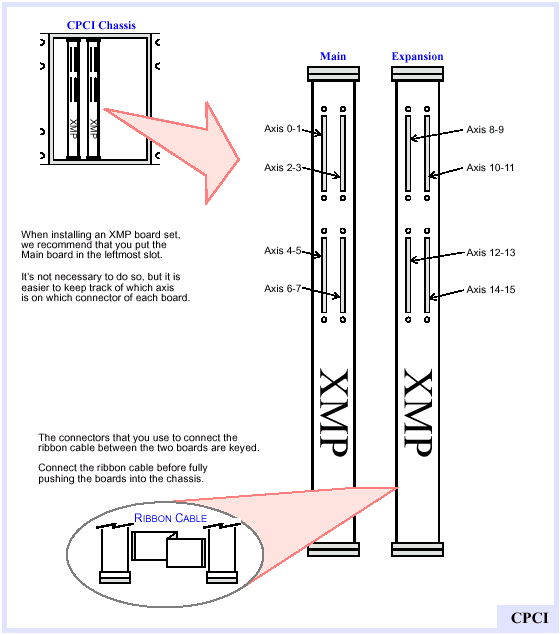

Main/Expansion Axis Assignments: CPCI


Main/expansion axis assignments: PCI
